Hyundai Welding · Super M series

Hyundai Welding MIG welders for manual and robotic welding

The Super M series brings high power, precise arc control and stable welding to industrial MIG/MAG work, and connects to robots and cobots when you automate. Kolarc welders are now part of Hyundai Welding.

Hyundai Welding Super M series welders, from the compact M300 C to the M600 with wire feeders
Featured · Super M500

500 A of industrial power, simple to run

The Super M500 does MIG/MAG, TIG and coated-electrode (MMA) welding in one machine. Its interface puts the most-used settings first, and its rugged, modular build stands up to harsh workshop conditions.

Industrial duty

500 A maximum, and 400 A at 100% duty cycle for long, heavy jobs.

435 programs, 99 memories

Programs for steel, stainless, aluminium, copper and zinc alloys, with memories for repeat jobs.

Robot and cobot ready

Its communication options let it connect to robots, cobots and automation, from manual welding to a CoboMate cell.

Built for service

A modular design, LED-lit wire unit and removable hose package support keep downtime low.

Hyundai Welding Super M500 power sources with wire feeders on trolleys

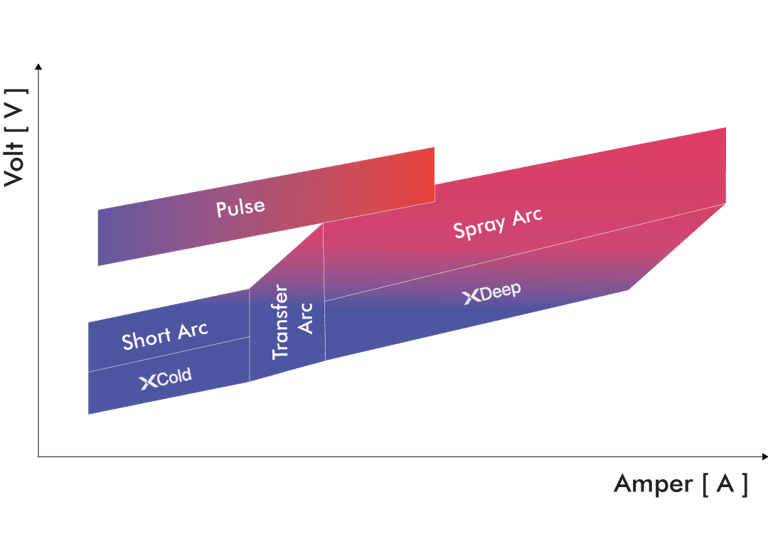

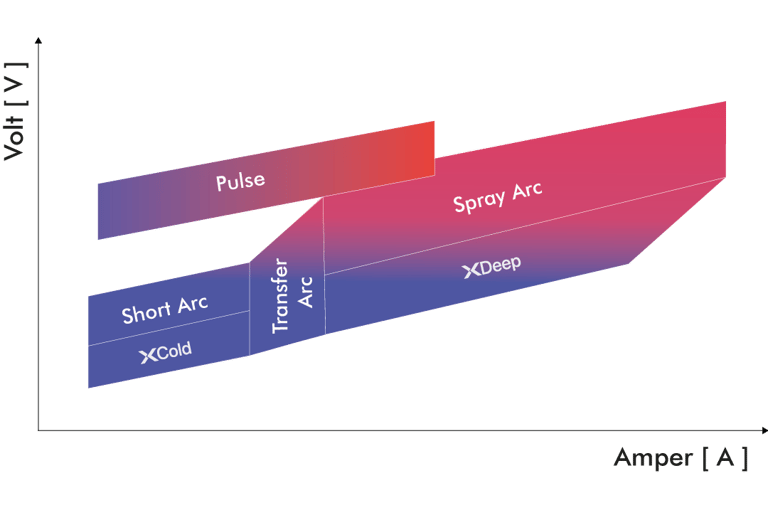

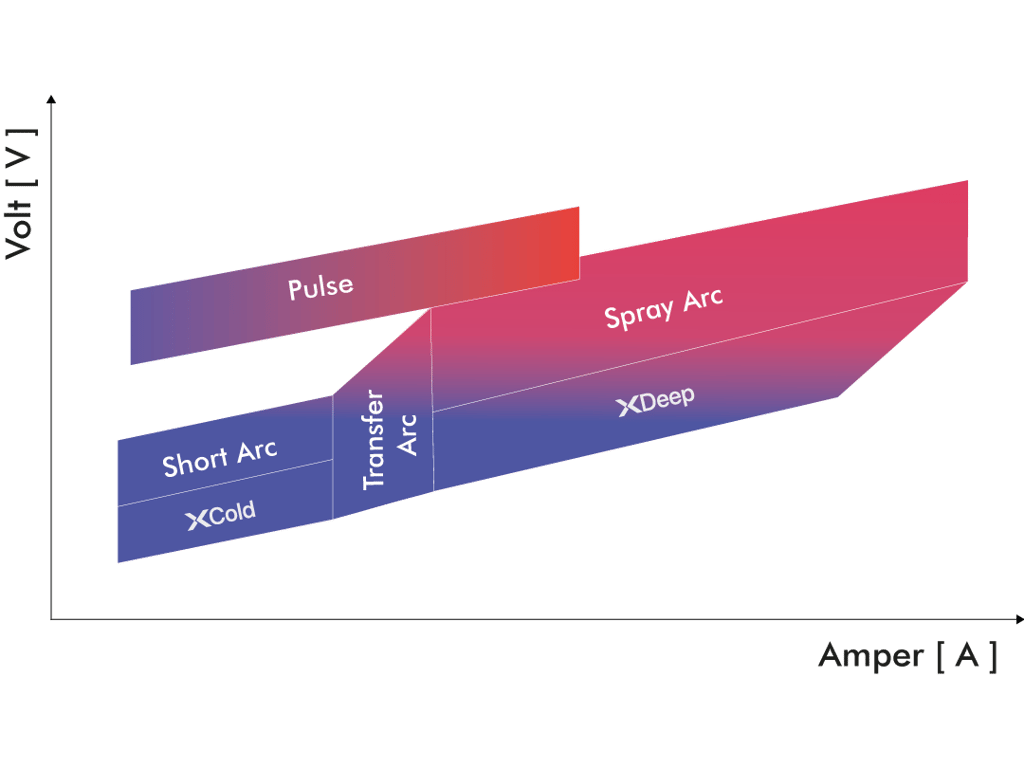

Welding processes

The right arc for every joint

Super M welders include advanced MIG/MAG processes for thin sheet, root passes, deep penetration and positional work.

Pulse

Controlled droplet transfer for a stable arc, low spatter and less post-weld cleanup.

Duo Pulse

Switches between two energy levels for an even, attractive seam, especially on aluminium and stainless.

XCold

Low heat input and low spatter, reducing distortion on thin material.

XRoot

Short-arc control for consistent root passes across varying gaps.

XDeep

A concentrated arc for deep, stable penetration at high travel speed.

Position

Dynamic arc control that keeps the pool manageable in vertical and overhead welds.

Twin

A TIG-like seam appearance at MIG/MAG speed, well suited to stainless steel.

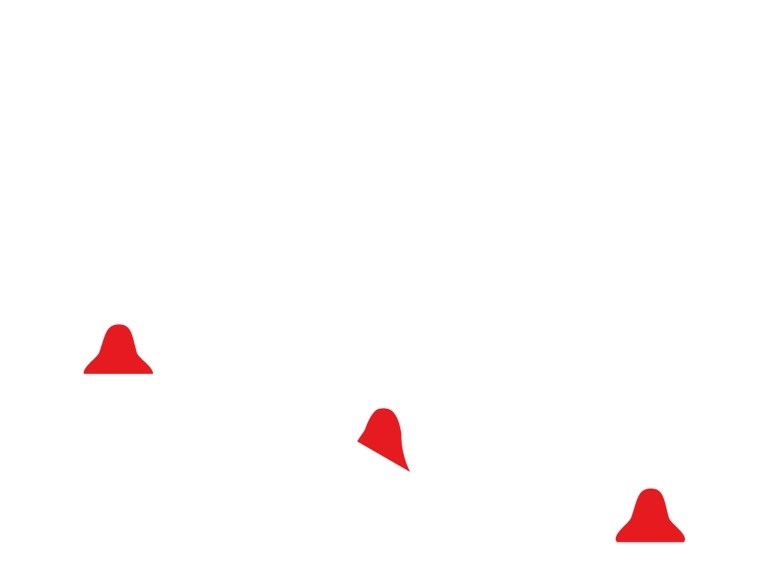

XStabil

Holds penetration steady as stick-out changes, so results depend less on torch distance.

Super M500 specifications

Technical data

Mains voltage400 V, −10 / +15%
Welding current10–500 A
Duty cycle at 40 °C500 A at 60%, 400 A at 100%
Open circuit voltage63–82 V
Standard roller set1.0 + 1.2 mm, steel
WeightAir cooled 92 kg; liquid cooled (W) 107 kg
Dimensions (W × L × H)Air cooled 532 × 974 × 1032 mm; liquid cooled 532 × 974 × 1270 mm
CertificationCE

Manufacturer data. Kolarc.Cloud software is available for weld traceability, consumption analysis and remote parameter management.

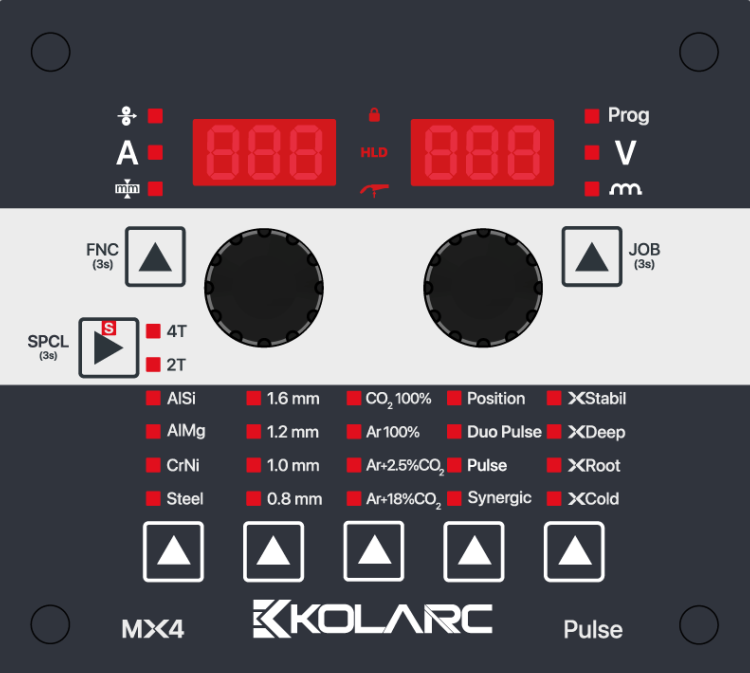

Super M series control panel with current and voltage displays, process and program buttons
The Super M range

From 220 A portable to 600 A heavy industrial

ModelMainsDuty cycle at 40 °C
Super M600400 V600 A 40%, 500 A 60%, 400 A 100%
Super M500400 V500 A 60%, 400 A 100%
Super M450400 V450 A 40%, 360 A 60%, 300 A 100%
Super M350400 V350 A 40%, 300 A 60%, 250 A 100%
Super M350 C400 V350 A 40%, 300 A 60%, 250 A 100%
Super M300 C / CS400 V300 A 40%, 230 A 60%, 170 A 100%
Super M220 C / CS230 V220 A 13%, 90 A 100%
Hyundai Welding Super M350 with separate wire feeder on a trolley
Super M350
Hyundai Welding Super M350 C compact welder on a trolley
Super M350 C
Hyundai Welding Super M300 C portable welder
Super M300 C

Source: Hyundai Welding (Kolarc) product data. Ask us about TIG, MMA and submerged-arc models.
