Free proof of concept: send us a part, we'll weld it on a cobot
Rainbow Robotics · RBW welding software

Rainbow Robotics cobots, set up for welding

We supply and integrate collaborative robots from Rainbow Robotics, the Samsung-backed South Korean robot maker, programmed for welding with RBW's point and click tablet software. Compact, easy to program and built to work beside people.

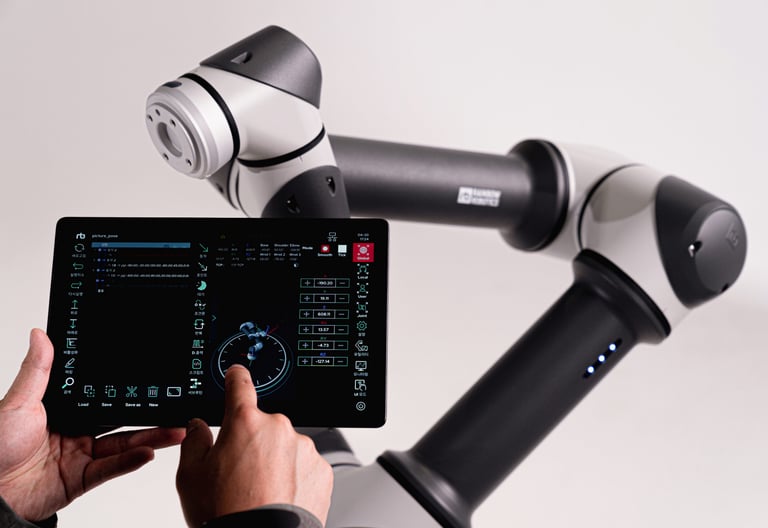

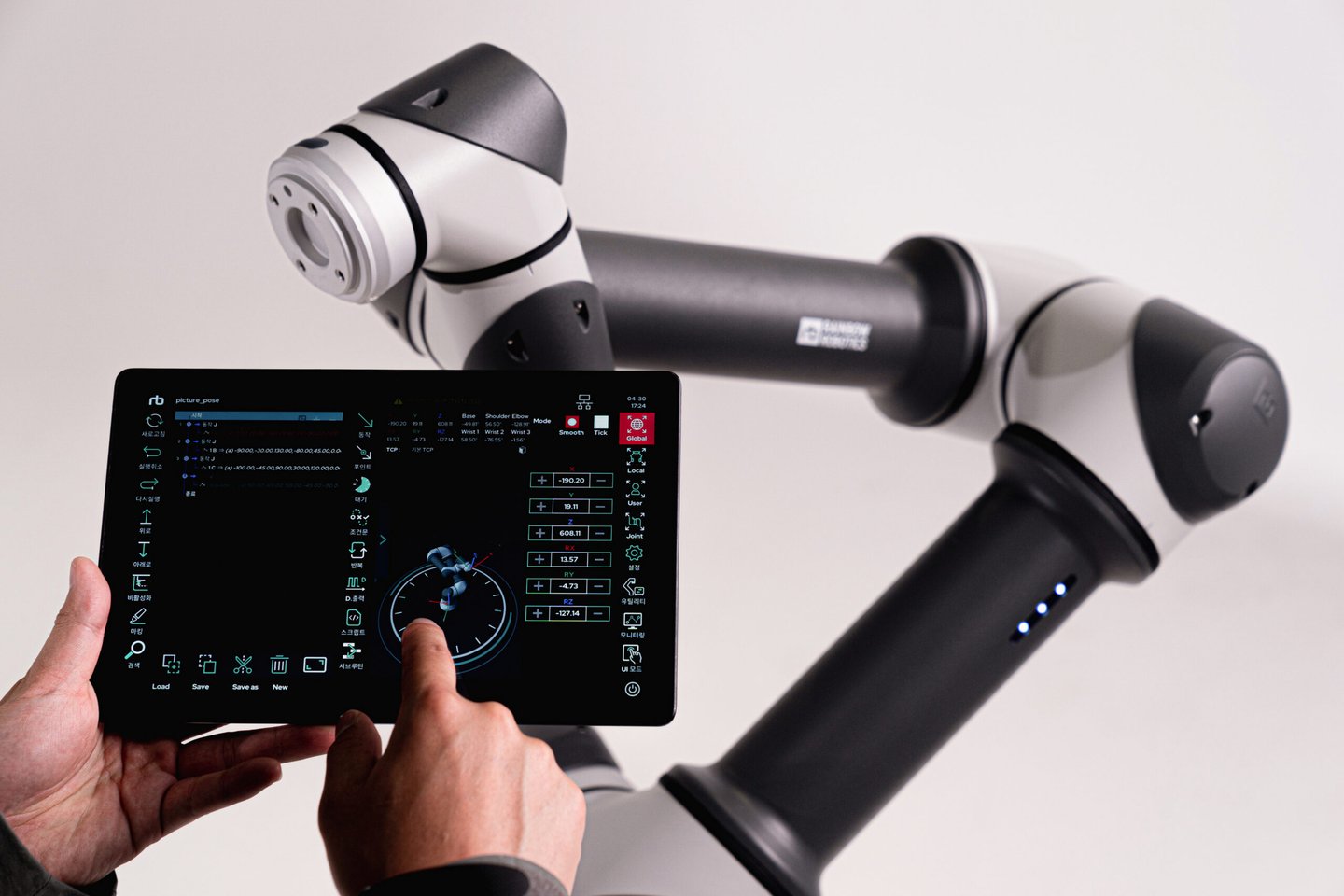

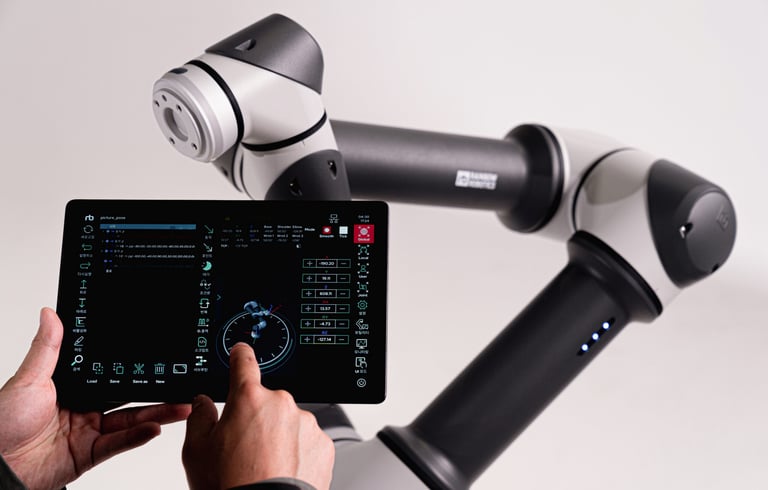

Rainbow Robotics cobot with its teach pendant
What is a cobot?

A robot built to work beside people

A cobot, or collaborative robot, works alongside people in a shared workspace. Rainbow Robotics cobots are compact, flexible and easy to program, with sensors and software that let them work safely near your team.

Unlike traditional industrial robots, which often need high budgets, complex programming, long set-up times and fenced cells, cobots make automation practical for small and medium manufacturers and for short, varied production runs.

Rainbow Robotics cobot working in a production setting
Who makes them

A full robotics company, not just a cobot brand

Rainbow Robotics is a South Korean robot maker that builds humanoids, four-legged robots, mobile robots and cobots. The same engineering goes into every RB series arm we install.

Humanoid roots

Founded in 2011 by the team behind the HUBO humanoid, winner of the 2015 DARPA Robotics Challenge Finals.

Backed by Samsung

Samsung Electronics became Rainbow's largest shareholder in December 2024, and the two work together on humanoid robot development.

More than arms

The range covers RBQ quadruped robots, RBM mobile robots, RB-Y mobile dual-arm robots and the RB series cobots.

Core parts made in-house

Actuators, encoders, brakes and controllers are designed and built by Rainbow, not bought in.

Source: Rainbow Robotics company overview, RB series brochure (2026).

RBW welding software

RBW makes a Rainbow cobot a welding machine

RBW is a tablet app built on Rainbow Robotics' own programming interface. It condenses robot programming into a welding job: points, weld segments, weaving and welder settings, in one robust point and click programming workflow. It's used by fabricators worldwide through more than 20 RBW partners, Anka among them. Watch customer stories

Point and click

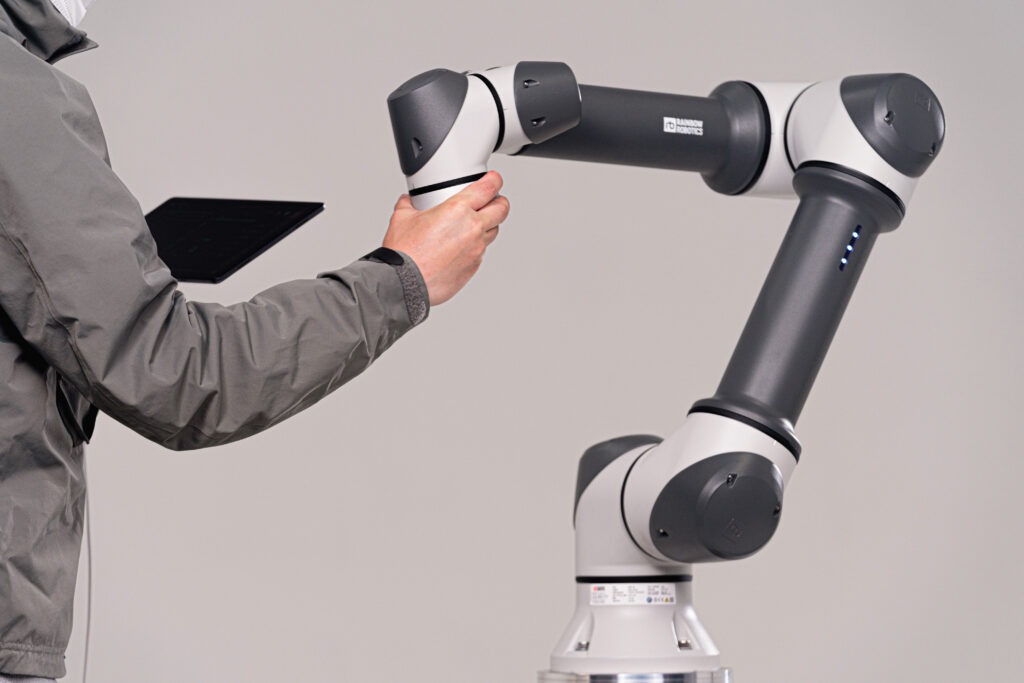

Guide the torch by hand and record points with the four-button RB-Ring.

Made for welders

Weaving, touch sensing and welder parameters in welding terms, not robot code.

Repeatable jobs

Save, edit and re-run jobs, so short runs are worth automating.

See RBW in a CoboMate Welder →

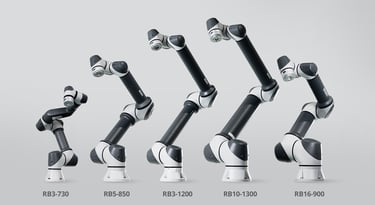

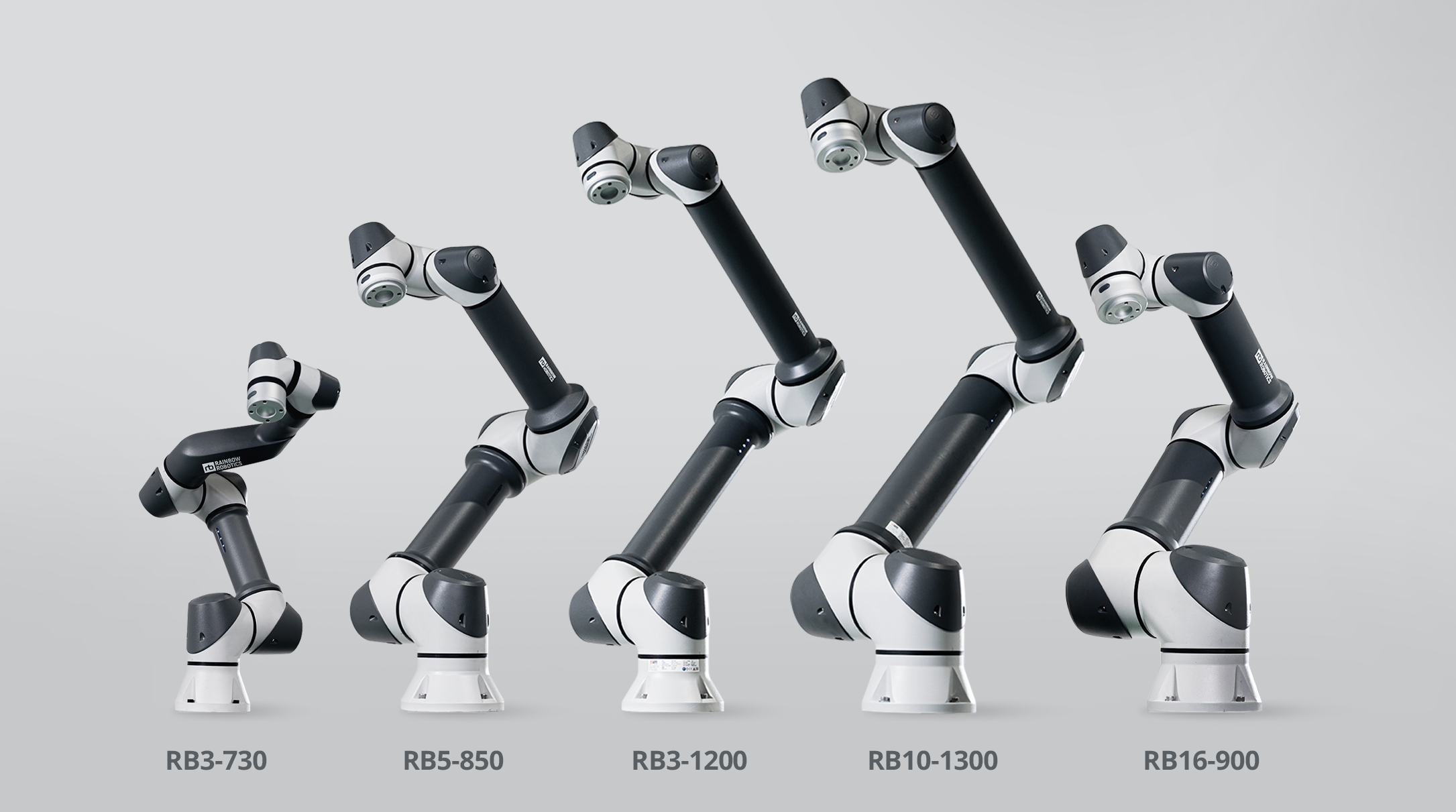

The RB series

Meet the family

Nine models, from 3 to 30 kg payload and 730 to 1,900 mm reach.

Rainbow Robotics RB3-730 collaborative robot arm
RB3-7303 kg · 730 mm
Rainbow Robotics RB5-850 collaborative robot arm
RB5-8505 kg · 928 mm
Rainbow Robotics RB16-900 collaborative robot arm
RB16-90016 kg · 900 mm
Rainbow Robotics RB3-1200 collaborative robot arm
RB3-12003 kg · 1,200 mmWelding pick

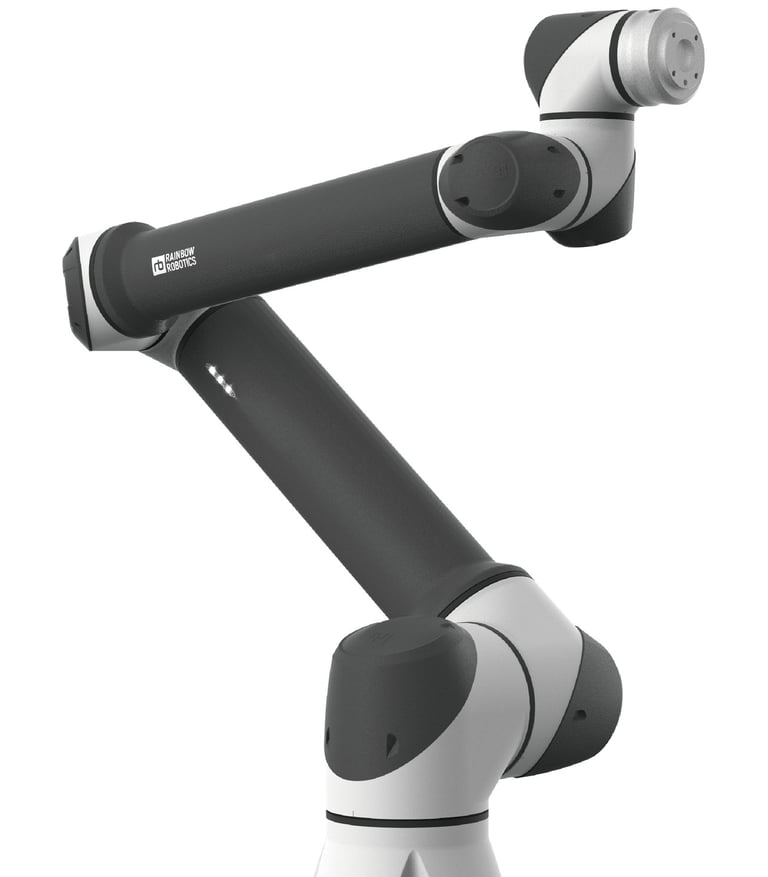

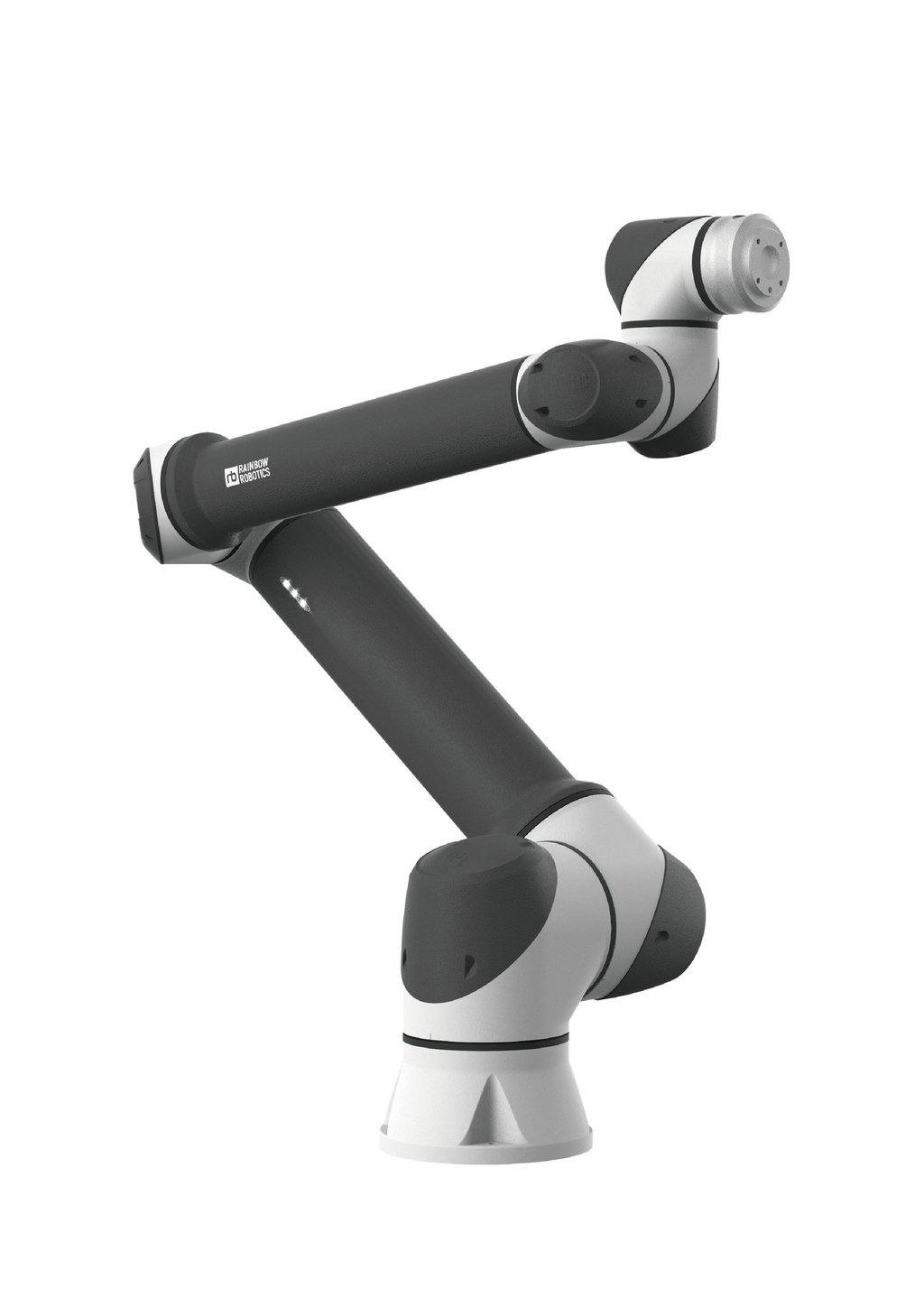

Rainbow Robotics RB10-1300 collaborative robot arm
RB10-130010 kg · 1,300 mmWelding pick
Rainbow Robotics RB6-1700 collaborative robot arm
RB6-17006 kg · 1,700 mmWelding pick
Rainbow Robotics RB20-1800 collaborative robot arm
RB20-180020 kg · 1,800 mm
Rainbow Robotics RB20-1900 collaborative robot arm
RB20-190020 kg · 1,900 mmWelding pick
Rainbow Robotics RB30-1400 collaborative robot arm
RB30-140030 kg · 1,400 mm
ModelPayloadReachWeightRating
RB3-7303 kg730 mm11 kgIP54
RB5-8505 kg928 mm22 kgIP54
RB16-90016 kg900 mm35.5 kgIP54
RB3-12003 kg1,200 mm22.4 kgIP66
RB10-130010 kg1,300 mm36.5 kgIP66
RB6-17006 kg1,700 mm39 kgIP66
RB20-180020 kg1,800 mm70.5 kgIP66
RB20-190020 kg1,900 mm75 kgIP66
RB30-140030 kg1,400 mm71 kgIP66

Source: Rainbow Robotics RB series brochure (2026). Every model has ±0.05 mm repeatability. For welding we most often use the RB3-1200, RB6-1700, RB10-1300 and RB20-1900; their IP66 rating suits the welding shop.

Safety

Global safety certifications

RB series cobots are tested and certified by TÜV SÜD to ISO 13849-1 (Category 3, PL d), ISO 10218-1 and ISO/TS 15066 for collaborative operation. They also carry CE and KCs marks, and the range holds NSF/ANSI 169, UL 1740 and CSA Z434 certifications.

Certification covers the robot. We still carry out a risk assessment on every cell we build, including the welding process, fumes and any laser.

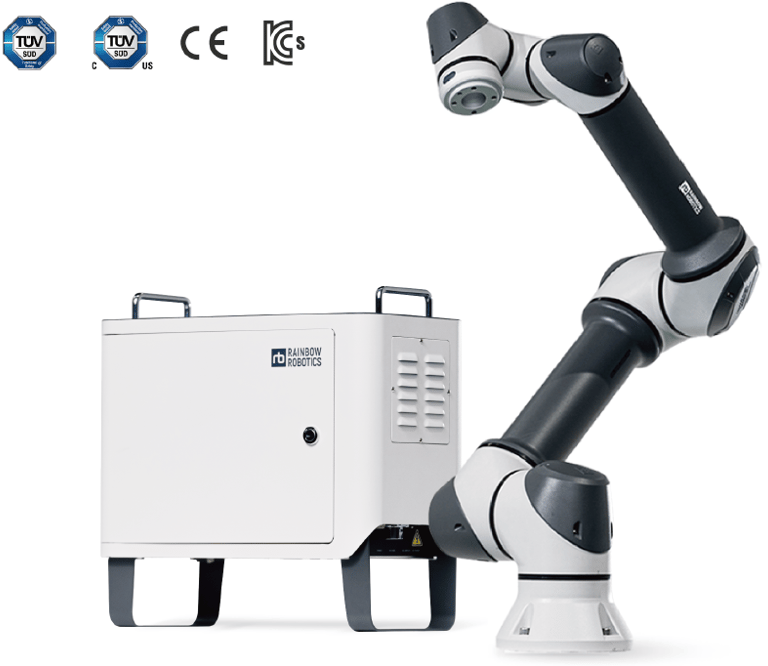

Rainbow Robotics RB series cobot and controller with TÜV SÜD, CE, KCs and NSF certification marks
Next step

Not sure which cobot fits your job?

Tell us about your parts and we'll recommend a cobot and cell layout, or weld a sample for free.
